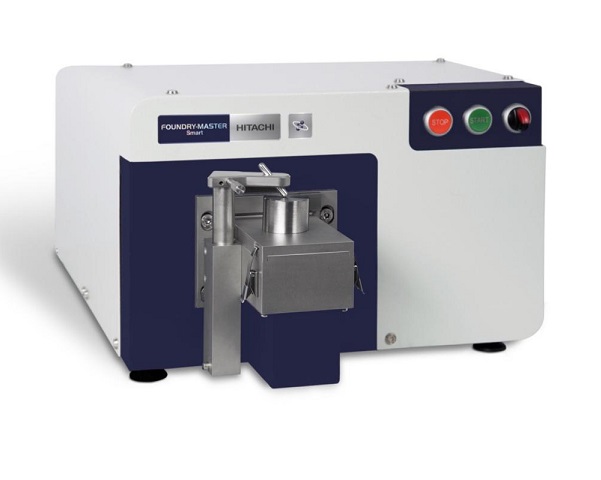

FOUNDRY-MASTER Smart臺式光譜儀可應用于固體金屬樣品的元素定量分析及牌號鑒定。光學系統采用CCD檢測器，光譜范圍覆蓋黑色、有色金屬典型材料，全新數字光源，儀器裝備有氬氣沖洗火花臺，開放式火花臺適合不同形狀和尺寸的樣品分析。
Spectrometer Optical System光譜儀光學系統
- Flat field Multi-CCD optics平場多CCD光學系統
- Focal length : 300 mm. 焦距：300 mm
- Effective wavelength 175 – 671nm. 有效波長范圍：175 – 671nm
- Pixel resolution 14 pm. 像素分辨率：14 pm
- Reciprocal dispersion（1st order）. 線色散率倒數(一級)：1.75nm/mm
- External entrance window, easy access for cleaning or exchange外部入射窗口，方便清洗及更換
- High stability against outside influences thanks to Peak Position Alignment (PPA).
實時波長校準功能保證了優異的長期穩定性。
- Solid, robust technology and compact design allow continuous use in any location, in the lab or on site, even in rugged conditions.
保證儀器能夠在任何惡劣的環境中持續正常工作，從實驗室到爐前現場，甚至更嚴酷的環境。
Spark Source火花源
- New digital spark generator with optimized discharge parameters for atomic lines, lowering detection limits of a wide range of elements全新的數字光源，電腦調節zui優的火花激發參數，幫助降低元素檢出限
- High energy pre-spark (HEPS) 高能預燃技術 (HEPS)
- Computer controlled parameters計算機調節參數
- Frequency 80– 500 Hz頻率80 – 500 Hz
- Voltage 250 – 500 V電壓250– 500 V
Argon Flushed Spark Stand氬氣沖洗火花臺
- Three-sided open sample stand開放式樣品臺設計
- Jet-Stream-Electrode with low argon consumption低氬氣消耗的“噴射電極”技術
- Universal adjustable sample clamp通用可調樣品適配器
- Exchangeable sparkstand plate for individual matrices特殊樣品可更換相應火花臺
- Air cooled空氣冷卻系統
Computer and readout system (external PC) 計算機及讀出系統
- Intel(R) i5-5200U 英特爾i5處理器
- Windows 10 operating systems Windows 10操作系統旗艦版
- Min. 2.20 GHz and 4 GB Ram 主頻2.20GHz內存4.00GB
- AMD Radeon R5 M330 顯卡
- Hard disk 硬盤容量500GB
- CD-burner CD燒錄功能
- Multi-channel A/D converter多通道A/D轉換
- Fire-Wire, LAN Ethernet防火墻，局域網
- Parallel interface并口
- Serial (RS 232) Interface系列RS232接口
- 2 USB Interfaces, 2個USB接口，
- VGA Video port視頻輸出功能
- Battery life 5 hours電池續航時間 5個小時
- External, 14.1 “TFT-LCD–Display 14.1 “液晶顯示器
- Resolution 1280 * 800 分辨率1280 * 800
- Weight 1.94Kg 重量 1.94千克
Data Output數據輸出
- Matrix-, Inkjet-, Thermo- or Laserprinter, all standard printers can be used可接駁各種標準打印設備
- Storage on disc (or other medium) and transfer to other programs (Excel, PDF) 數據存儲在移動存儲器上或以Excel、PDF形式輸出
- Network connection via serial or USB-Interface網絡連接通過串口或USB接口
Software軟件
- Operating system Windows 10 Windows 10操作系統,
- spectrometer software WAS光譜儀WasLab操作軟件
- Optional data maintenance programs 可選數據維護程序
Analytical Functions of Spectrometer Software操作軟件分析功能
- Type recalibration控樣校正
- Global or partial recalibration全局或局部標準化
- Reproducibility check during recalibration and analysis校準和分析時再現性檢查
- Automatic display of required recalibration- or control samples校準或監控樣品的自動顯示
- Flagging of results beyond calibration range自動標識超出曲線范圍的結果
- Input of user-defined sample identity codes用戶自定義樣品碼輸入
- Automatic or user-controlled printout of analytical results自動或用戶自定義分析結果的打印、存儲及輸出
- Free editable grade database自定義牌號數據庫
- Grade-search and identification牌號搜索和牌號鑒定功能
- Input of user-defined formulas自定義公式輸入
- Output of analytical results in light quantity intensities, ratios, recalibrated intensity ratios, corrected recalibrated intensity ratios 分析結果可顯示絕對強度、相對強度、標準化強度和校正強度等多種形式
- Output of analytical results in concentration, mass percentage, mass percentage related to spectral lines 分析結果可用濃度、通道濃度表示
- 1 or 2 point recalibration單點標或兩點標準化
- Additive and multiplicative interelement correction干擾校正
- Matrix correction基體校正
- Automatic spectral line switching 譜線自動切換
- Calculation of average, standard deviation and variation coefficient for any number of burns任意激發次數測量結果的平均值、標準偏差及相對標準偏差等計算
- Automatic hardware diagnostics硬件故障自動診斷
- Graphical display of spectra 光譜圖形顯示
- Storage of spectral information for future evaluation譜圖信息存儲
TECHNICAL DATA 技術數據
Dimensions 尺寸:
- 高： 280 mm
- 長： 665 mm
- 寬： 415 mm
- 重量：35 kg
電源要求：
- 220 V /50 Hz
- 運行功率700 W
- 待機功率50 W
- 16 A慢熔保險絲
氬氣要求：
- 99.999%高純氬氣, purity 5.0
- 進氣壓力3bar,Pressure 3 bar
- 銅管Copper argon duct , unpolluted (e.g. solder)
|
